Product Picture

开发板STM32F103C8T6-40.jpg 开发板STM32F103C8T6-2pin-3.jpg

Product Description

  • CPU: STM32F103C8T6, main frequency: 72MHz, internal FLASH: 64KB, internal SRAM: 20KB
  • Small and delicate appearance, convenient for various DIY projects
  • Support SWD and serial download, easy to debug
  • Support SPI interface and IIC interface display module direct insertion
  • Extended GPIO port for easy connection to various peripherals
  • Rich development resources, easy to learn, easy to get started

Product Parameters


Serial number Name Description
J1 Connect to the Common-SPI display module
J2 Connect to the Common-SPI/IPS display module

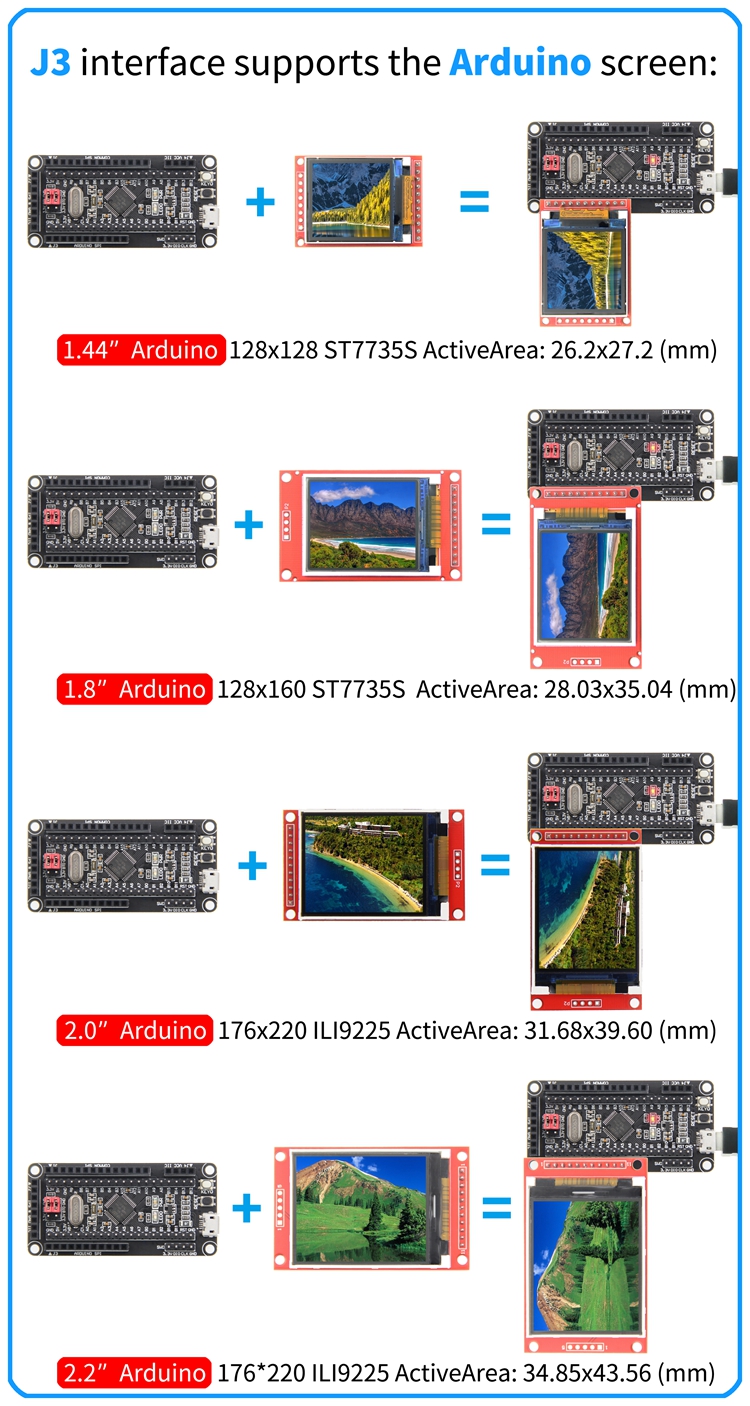

J3 Connect to the Arduino-SPI display module

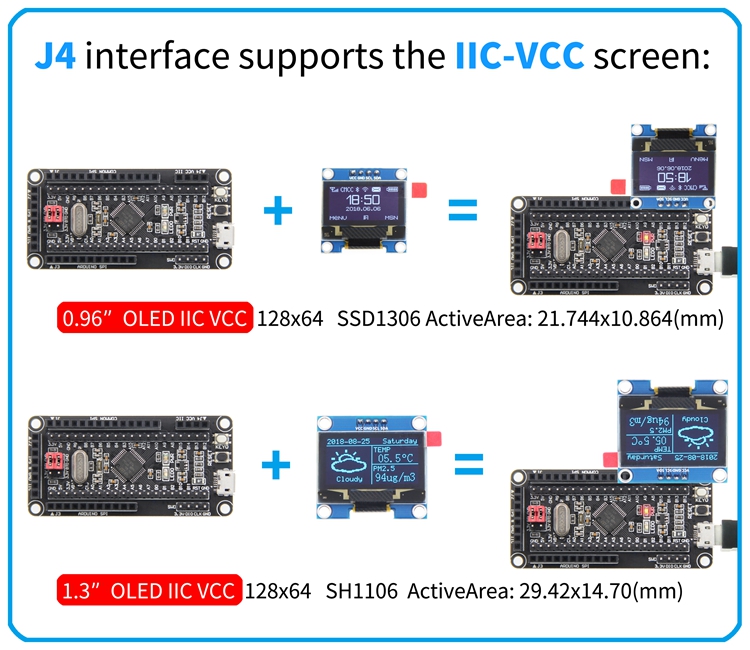

J4 Connect to the IIC-VCC display module
SWD For SWD download and emulation
USB interface Used for USB communication and power supply
Reset button Reset development board
KEY0 For standby wake up or program button function design
BT0/BT1 Used to select the startup mode after the development board is reset
STM32F103C8T6 Main chip, main frequency: 72MHz, internal FLASH: 64KB, internal SRAM: 20KB, support RTC, interrupt, PWM, DMA and other functions
Power light Red LED light is used to indicate whether the development board is normally powered
LED0 Blue LED light, used to indicate the running status of the program and DIY program lighting effect design
⑬,⑭ IO expand It is used to connect various peripherals to facilitate project development
Power stabilized IC 5V in,3.3V out
Self restoring fuse Ensure the safety of the circuit in case of short circuit or other fault

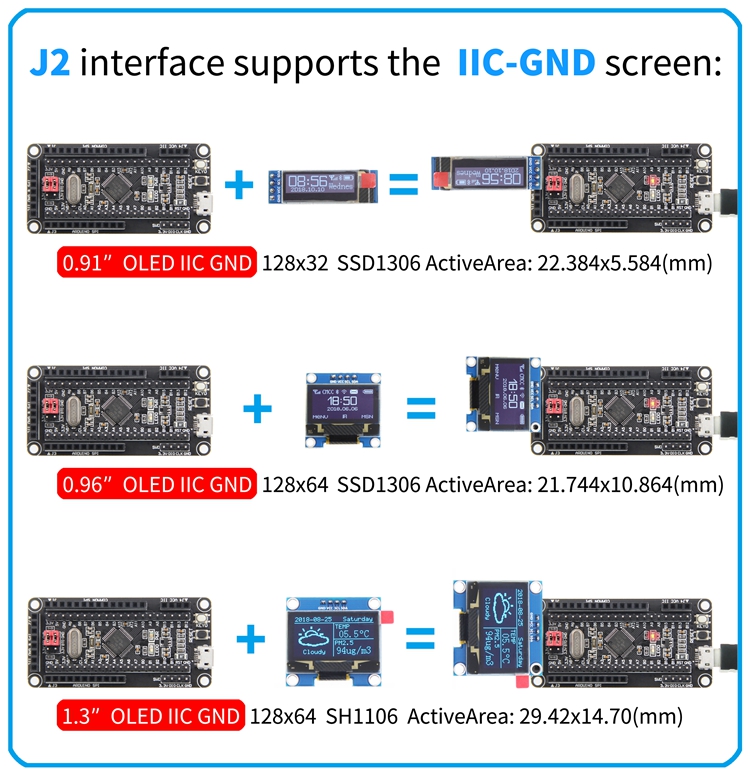

How to connect LCD screen

开发板STM32F103C8T6-Commom-SPI-EN.jpg 开发板STM32F103C8T6-IIC-GND-EN.jpg 开发板STM32F103C8T6-30-IPS-3-EN.jpg 开发板STM32F103C8T6-Arduino-EN.jpg 开发板STM32F103C8T6-IIC-VCC-EN.jpg
