7inch HDMI Display-H

From LCD wiki
Jump to: navigation, search




Product Pictures

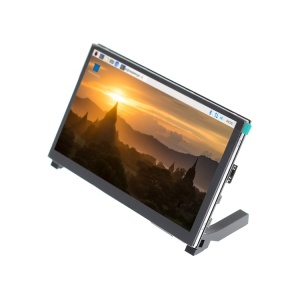

Product Feature

  • IPS full Angle display
  1. The viewing Angle is large
  2. true color
  3. Dynamic picture quality is excellent
  4. Energy saving and environmental protection
  • 1024X600 hd vision
  1. Resolution for hd 1024X600 dot matrix
  2. It is more delicate than 800X480 ordinary screen
  • Tempered glass touch panel
  1. Hardness up to 6H, more durable and more scratch resistant
  • External audio output interface
  1. Built - in power amplifier circuit
  2. 3.5mm external audio interface
  • Used as a mini PC monitor
  1. Support raspberry pie, Banana Pi, BB Black and other mainstream development board
  2. Support Raspbian, Kali Linux, ubuntu and other mainstream systems, single touch plug and play without driver.
  • Used as a computer display
  1. Support win10/win8/win7 system, support five-point touch plug and play driver

Product Description

  • Product Parameters
Screen Type IPS screen
Screen Size 7.0 inch
Resolution 1024 x 600
backlight adjustment Independent button to adjust
Touch Screen Type Capacitive Touch Screen
Touch IC GT911
Power MicroUSB(5V/2A)
Power Dissipation 100% brightness, 2.9W; Speaker version, 100% brightness, 100% volume, 4W
Video Input Interface HDMI
Audio Output Interface 3.5mm Audio Interface
Module Size (L x W x H) 164.90 × 102.00 × (14.25±0.2)mm
Product weight (including package) 510g

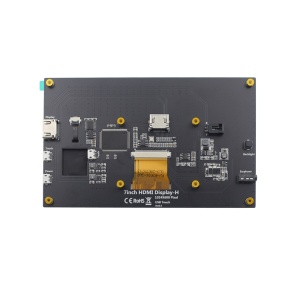

  • Key and Interface Function Description


① HDMI Interface Input HDMI signal, using HDMI cable connection, commonly used to connect to the computer,The maximum supported resolution is 1920x1080
② Touch Interface Transfer touch signal, connect with micro USB cable, provide touch and power supply function, commonly used to connect computer
③ Power Interface Connect to the power supply and use micro USB cable to connect. Only power supply function is provided
④ Touch Interface Transmit touch signal, connect with micro USB cable, provide touch and power supply function, commonly used to connect Raspberry Pi
⑤ 3.5mm Audio Interface Output audio signal, connect audio output device, such as headphones
⑥ Backlight Adjustment Button Adjust the backlight brightness of the display screen. With each click, the backlight brightness increases by 10, the maximum increases to 100, and then starts from 0,Press and hold for 3 seconds to turn off the backlight
⑦ Cooling Fan Interface Connect cooling fan
⑧ HDMI Interface Input HDMI signal, connect with HDMI adapter, only used to connect to the Raspberry Pi,The maximum supported resolution is 1024x600
  • Product Size


Working with Raspberry Pi

Step 1. Download the Official image

1) Download Raspbian Official Image
Download URL: https://www.raspberrypi.org/downloads/raspbian/
Username: pi Password: raspberry
2) Download Ubuntu Mate Official Image
Download URL: https://ubuntu-mate.org/download/
The user name and password can be set by yourself after startup
3) Download Kail Official Image
Download URL: https://www.offensive-security.com/kali-linux-arm-images/
Username: kali (The old version is root) Password: kali(The old version is toor)
4) Download Retropie Official Image
Download URL: https://retropie.org.uk/download/
Username: pi Password: raspberry

Step 2. Brun Official Image

1) Download and install tool software(If they are already installed,this step can be ignored)
SD card format software SDCard Formatter download URL :
Image burning software win32diskimager download URL:
2) Format SD card
Insert the SD card into the card reader -> Insert the card reader into the computer -> Open the SDFormatter software -> Select SD card ->
Select quick format (generally select quick format, other options can be selected according to your own needs) -> Click the Format button ->
Select "Yes" -> Click OK after formatting.
3) Brun Image
Open the win32diskimager software -> Select the image file to be burned (xxx.img ) -> Select SD card -> Click the "write" button ->
Select "Yes" -> Wait for the burning to complete (the whole process lasts about 10 minutes)

Step 3. Modify the “config.txt” configuration file

Open the “config.txt” file in the root directory of SD card on the computer, Add the following at the end of the file, save and exit.
hdmi_cvt 1024 600 60 6 0 0 0

Note: for the system image of Raspberry Pi after 2021-10-30, dtoverlay = vc4-kms-v3d should also be modified to dtoverlay = vc4-fkms-v3d, otherwise it may fail to start

Step 4. Insert SD card

After the above steps are completed, pop up the SD card on the computer and insert it into the SD card slot on the back of the raspberry pie.

Step 5. Running system

Connect the HDMI interface and touch interface of the display screen to raspberry pie, connect the power supply of raspberry pie,
and start the machine to display and touch normally..

Work as HDMI touch monitor

This product can be used as the HDMI touch monitor of Windows computer, only need to connect HDMI interface and TOUCH interface, can normally display and support up to five points touch.


  • Document
  1. 7inch-HDMI-Display-(H)-Quick-Start.pdf
  2. 7inch-HDMI-Display-(H)-User-Manual.pdf
  3. How_to_install_the_LCD_driver_V1.2
  4. How_to_install_matchbox-keyboard
  5. How_to_use_Raspberry_Pi(Download,Format,Burn,SSH,PuTTy)-V1.0.pdf
  • Driver download
  1. Local download: LCD-show.tar.gz
  • Images Download
If you have difficulty installing the driver, or if you still can't use the display properly after installing the driver,
Please Try our Configned images for tested.
Just need download and write the image into the TF card. DO NOT need any driver installation steps.
Image Name Version Support Default Password
Raspbian 2024-03-15 PI5/PI4/PI3B+/PI3/PI2/ ZERO/ZERO W user:pi


Ubuntu MATE-32bit 22.04 PI4,PI3,PI2 user:pi


Kali Linux RaspberryPi 2, 3 and 4 2023.1 PI4B,PI3B+,PI3,PI2 user: kali

password: kali

retropie-buster-rpi4 4.6 PI4B user:pi


retropie-buster-rpi2_rpi3 4.6 PI3B+,PI3,PI2 user:pi


retropie-buster-rpi1_zero 4.6 PI1,PI ZERO/ZERO W user:pi


Image Name Version Download
Raspbian 2024-03-15 Baiduyun.jpgBaiduYun: MPI7006-MPI7008-7inch-H-S-2024-03-15-raspios-bookworm-armhf(Pi4-Pi5) 提取码:6fun
Mega-1.jpgMega: MPI7006-MPI7008-7inch-H-S-2023-02-21-raspios-bullseye-armhf
Ubuntu MATE-32bit 22.04 Baiduyun.jpgBaiduYun: MPI7006-MPI7008-7inch-H-S-ubuntu-mate-22.04-desktop-armhf+raspi提取码:159d
Mega-1.jpgMega: MPI7006-MPI7008-7inch-H-S-ubuntu-mate-22.04-desktop-armhf+raspi
Kali Linux RaspberryPi 2, 3 and 4 2023.1 Baiduyun.jpgBaiduYun: MPI7008-MPI7006-7inch-S-H-kali-linux-2023.1 提取码:y3t5
Mega-1.jpgMega: MPI7008-MPI7006-7inch-S-H-kali-linux-2023.1
retropie-buster-rpi4 4.6 Baiduyun.jpgBaiduYun: MPI7006-7inch-H-1024x600-retropie-buster-4.6-rpi4 提取码:lxch
Mega-1.jpgMega: MPI7006-7inch-H-1024x600-retropie-buster-4.6-rpi4
retropie-buster-rpi2_rpi3 4.6 Baiduyun.jpgBaiduYun: MPI7006-7inch-H-1024x600-retropie-buster-4.6-rpi2_rpi3 提取码:ti7w
Mega-1.jpgMega: MPI7006-7inch-H-1024x600-retropie-buster-4.6-rpi2_rpi3
retropie-buster-rpi1_zero 4.6 Baiduyun.jpgBaiduYun: MPI7006-7inch-H-1024x600-retropie-buster-4.6-rpi1_zero 提取码:l09u
Mega-1.jpgMega: MPI7006-7inch-H-1024x600-retropie-buster-4.6-rpi1_zero

  • Software
  1. Panasonic SDFormatter
  2. Win32DiskImager
  3. PuTTY
