2.2inch SPI Module ILI9341 SKU:MSP2202

From LCD wiki
Jump to: navigation, search




Product Picture

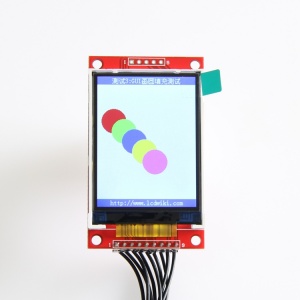

MSP2202-006.jpg MSP2202-003.jpg MSP2202-004.jpg

Product Description

  • 2.2-inch color screen,support 65K color display,display rich colors
  • 320X240 resolution, clear display
  • Using the SPI serial bus, it only takes a few IOs to illuminate the display
  • Easy to expand the experiment with SD card slot
  • Provide a rich sample program
  • Military-grade process standards, long-term stable work
  • Provide underlying driver technical support

Product Parameters

Name Parameter
Display Color RGB 65K color
Screen Size  2.2(inch)
Type TFT
Driver IC ILI9341
Resolution 320*240 (Pixel)
Module Interface 4-wire SPI interface
Active Area (AA area) 33.84x45.12(mm)
Module PCB Size 40.10x67.20(mm)
Operating Temperature -20℃~60℃
Storage Temperature -30℃~70℃
VCC power voltage 3.3V~5V
Logic IO port voltage 3.3V(TTL)
Power Consumption TBD
Rough Weight(Package containing) 22(g)

Interface Definition


Number Pin Label Description
1 VCC 5V/3.3V power input
2 GND Ground
3 CS LCD chip select signal, low level enable
4 RESET LCD reset signal, low level reset
5 DC/RS LCD register / data selection signal,

high level: register, low level: data

6 SDI/MOSI SPI bus write data signal
7 SCK SPI bus clock signal
8 LED Backlight control, high level lighting,

if not controlled, connect 3.3V always bright

9 SDO/MISO SPI bus read data signal, if you do not need to the read function, you can not connect it
