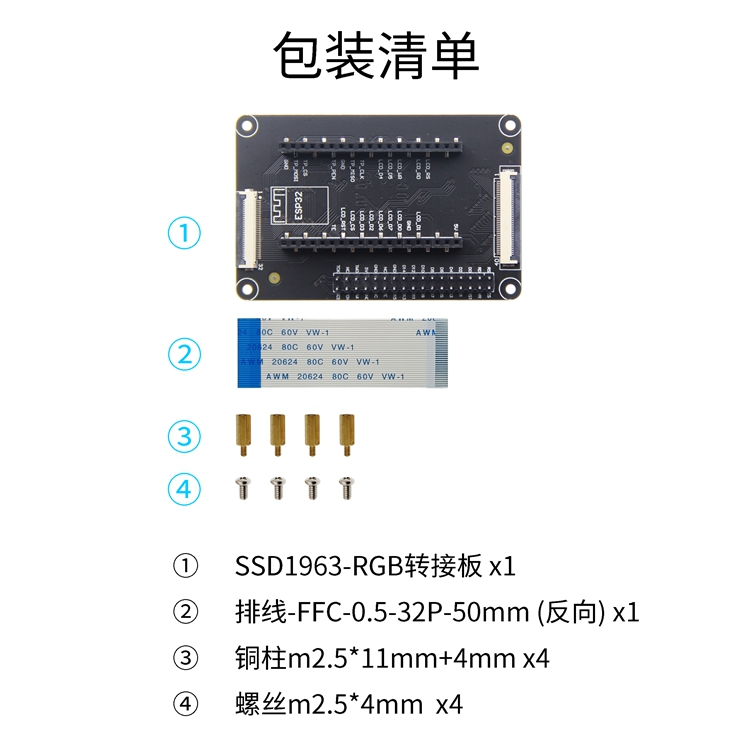

Product Picture

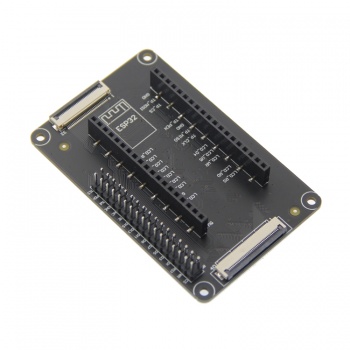

RGB转接板-3.jpg RGB转接板-2pin.jpg

Product Description

  • The ssd1963 control IC is On board
  • Support the direct connection of flexible cable and needle of STM32 development board
  • Support direct insertion of esp32 development board
  • Support direct connection of RGB display module flexible cable
  • Support 8-bit and 16 bit parallel bus transmission, transmission speed block
  • Provide rich STM32 platform and esp32 platform sample program
  • Military grade process standard, long-term stable work
  • Provide technical support for underlying driver

Product Parameters

Name Parameter
SKU SSD1963
Driver IC SSD1963
STM32 development board input interface 16 bit parallel port
Input interface of esp32 development board 8 bit parallel port
Output interface 24 bit RGB parallel port
Module PCB Size 50.00x77.00(mm)
Input Voltage 5V
IO Voltage 3.3V and 1.8V
Power Consumption 36mA
Rough Weight(Net weight) 22 (g)

Interface Definition


①--40pin flexible cable output interface
②④--In line interface of esp32 development board
③--STM32 development board 32pin flexible cable input interface
⑤--STM32 development board 34pin pin input interface
  • STM32 development board row pin input interface pin description
Number Pin name Description
1 CS LCD reset control pin( low level enable)
2 RS LCD register / data selection control pin(high level: register, low level: data)
3 WR LCD write control pin
4 RD LCD read control pin
5 RST LCD reset control pin( low level reset)
6~21 D0~D15 LCD 16 bit data bus pin (use d0 ~ D7 in 8-bit mode)
22 GND Module power ground pin
23 TE LCD tearing effect signal pin (read only)
24 NC No definition, reserved
25 NC No definition, reserved
26 GND Module power ground pin
27 GND Module power ground pin
28 5V Module power supply positive pin (connected to 5V)
29 TMI Resistance touch screen SPI bus read data pin (capacitor touch screen not used)
30 TMO IIC bus data pin of capacitive touch screen (SPI bus write data pin of resistance touch screen)
31 PEN Touch screen interrupt detection pin(Low level when a touch occurs)
32 NC No definition, reserved
33 TCS Capacitor touch screen reset pin (resistance touch screen chip selection pin)
34 TCK IIC bus clock pin of capacitive touch screen (SPI bus clock pin of resistance touch screen)
  • STM32 development board flexible cable input interface pin description
Number Pin name Description
1 TCK IIC bus clock pin of capacitive touch screen (SPI bus clock pin of resistance touch screen)
2 TCS Capacitor touch screen reset pin (resistance touch screen chip selection pin)
3 PEN Touch screen interrupt detection pin(Low level when a touch occurs)
4 TMO IIC bus data pin of capacitive touch screen (SPI bus write data pin of resistance touch screen)
5 TMI Resistance touch screen SPI bus read data pin (capacitor touch screen not used)
6 5V Module power supply positive pin (connected to 5V)
7 GND Module power ground pin
8 GND Module power ground pin
9 NC No definition, reserved
10 NC No definition, reserved
11 TE LCD tearing effect signal pin (read only)
12~27 D15~D0 LCD 16 bit data bus pin (use d0 ~ D7 in 8-bit mode)
28 RST LCD reset control pin( low level reset)
29 RD LCD read control pin
30 WR LCD write control pin
31 RS LCD register / data selection control pin(high level: register, low level: data)
32 CS LCD reset control pin( low level enable)
  • ESP32 development board in line interface pin description
Number Pin name Description
1 5V power pin (connected to 5V)
2 LCD_RS LCD register / data selection control pin(high level: register, low level: data)
3 LCD_RD LCD read control pin
4 LCD_D1 Pin 2 of 8-bit parallel data bus
5 GND Power ground pin
6 LCD_WR LCD write control pin
7 LCD_D0 Pin 1 of 8-bit parallel data bus
8 LCD_D5 Pin 6 of 8-bit parallel data bus
9 LCD_D7 Pin 8 of 8-bit parallel data bus
10 LCD_D4 Pin 5 of 8-bit parallel data bus
11 LCD_D6 Pin 7 of 8-bit parallel data bus
12 LCD_D2 Pin 3 of 8-bit parallel data bus
13 TP_CLK IIC bus clock control pin of capacitive touch screen(SPI bus clock control pin of resistance touch screen)
14 LCD_D3 Pin 4 of 8-bit parallel data bus
15 TP_MISO SPI bus read data pin of resistance touch screen(capacitive touch screen not used)
16 LCD_CS LCD chip select control pin
17 GND Power ground pin
18 LCD_RST LCD reset control pin
19 TP_PEN Touch screen interrupt control pin
20 TE Tearing Effect Signal pin(read-only)
21 TP_CS Capacitive touch screen reset pin(resistance touch screen chip selection pin)
22 TP_MOSI IIC bus data pin of capacitive touch screen(resistance touch screen SPI bus write data pin)
23 GND Power ground pin
  • Pin description of flexible cable output interface
Number Pin name Description
1 VCC5 Power input pin(connect to 5V)
2 VCC5 Power input pin(connect to 5V)
3~10 R0~R7 8-bit RED data pin
11 GND power ground pin
12~19 G0 ~ G7 8-bit GREEN data pin
20 GND power ground pin
21~28 B0 ~ B7 8-bit GREEN data pin
29 GND power ground pin
30 PCLK Pixel clock control pin
31 HSYNC Horizontal synchronous signal control pin
32 VSYNC Vertical synchronous signal control pin
33 DE Data enable signal control pin
34 BL LCD backlight control pin
35 TP_CS Capacitor touch screen reset pin (resistance touch screen chip selection pin)
36 TP_MOSI Data pin of IIC bus of capacitance touch screen (write data pin of SPI bus of resistance touch screen)
37 TP_MISO Resistance touch screen SPI bus read data pin (capacitance touch screen not used)
38 TP_CLK IIC bus clock control pin of capacitive touch screen (SPI bus clock control pin of resistance touch screen)
39 TP_PEN Touch screen interrupt control pin (low level when touch is generated)
40 RST LCD reset control pin (effective at low level)

How to Connect

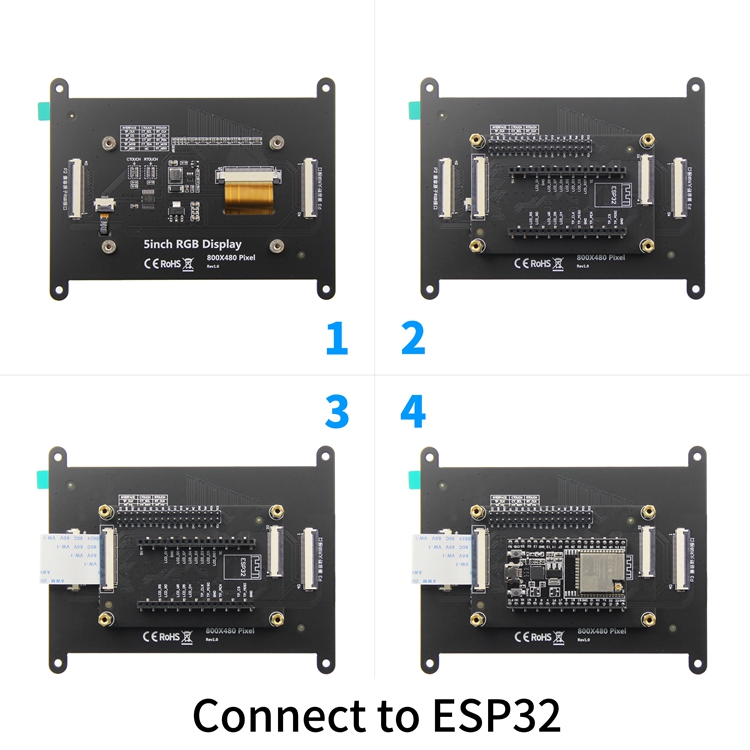

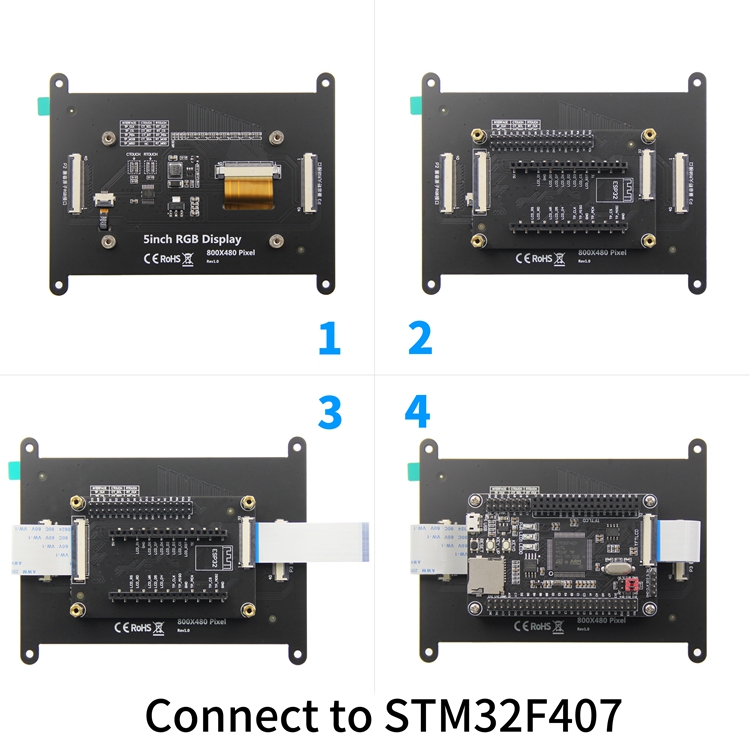

5-RGB-转接板-原子小系统板.jpg 5-RGB-转接板-STM32F407.jpg 5-RGB-ESP32-2.jpg
