7inch HDMI Display (S)

From LCD wiki
Jump to: navigation, search
语言选择(Other languages): 中文 English

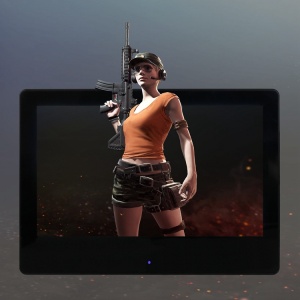

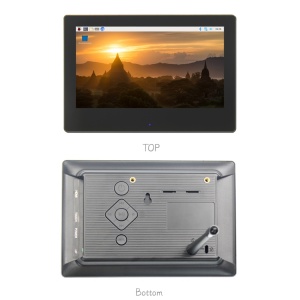

Product Pictures

7-S-main-10.jpg 7-S-2pin.jpg 7-S-10-2.jpg

Product Feature

  • IPS full Angle display
  1. The viewing Angle is large
  2. true color
  3. Dynamic picture quality is excellent
  4. Energy saving and environmental protection
  • 1024X600 hd vision
  1. Resolution for hd 1024X600 dot matrix
  2. It is more delicate than 800X480 ordinary screen
  • Tempered glass touch panel
  1. Hardness up to 6H, more durable and more scratch resistant
  • Built-in sound system
  1. Built - in power amplifier circuit
  2. Built-in stereo dual speaker system, in the display while dancing with the music
  • Front key dimming + breathing lamp
  1. The front panel has a set of hidden touch buttons to support one-button adjustment of backlight brightness
  2. The front panel is equipped with a breathing lamp to indicate the working status
  • Used as a mini PC monitor
  1. Support raspberry pie, Banana Pi, BB Black and other mainstream development board
  2. Support Raspbian, Kali Linux, ubuntu and other mainstream systems, single touch plug and play without driver.
  • Used as a computer display
  1. Support win10/win8/win7 system, support five-point touch plug and play driver

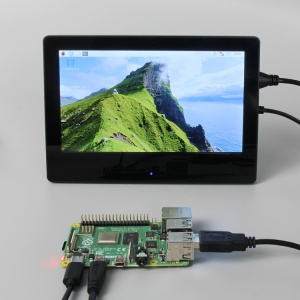

Working with Raspberry Pi

1. Download the latest Raspbian image from the official directory and follow the official tutorial steps to install the system.

2. Open the config.txt file in the root directory of Micro SD card and add the following code at the end of the file, save and exit the Micro SD card:

hdmi_force_edid_audio=1
max_usb_current=1
hdmi_force_hotplug=1
config_hdmi_boost=7
hdmi_group=2
hdmi_mode=87
hdmi_drive=2
display_rotate=0
hdmi_cvt 1024 600 60 6 0 0 0

3.Insert Micro SD card, connect the 7inch HDMI Display (S) to Raspberry Pi , connect the power to boot.

Work as HDMI touch monitor

This product can be used as the HDMI touch monitor of Windows computer, only need to connect HDMI interface and TOUCH interface, can normally display and support up to five points touch.

Product Feature

  • Comprehensive shell care
  • This product has stereo speakers and 3.5mm headphone jack, support HDMI audio input, Headset audio output.

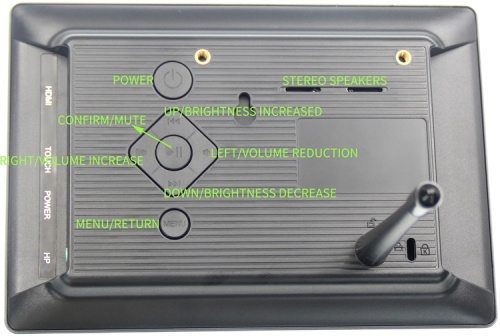

  • Equipped with buttons to control the System Settings Menu, the functions are as follows:


KEY DESCRIPTION
BREATHING LIGHT Short press once, the backlight brightness increases by 10%, after reaching 100%, it will start to cycle from 10%;

Long press 3 seconds, backlight off;

Short press again, Restore the brightness before.

POWER When there is HDMI signal, press the button, the system starts up, and the breathing lamp turns blue and slowly flashes.

Press again, the system shuts down, the breathing light turns red and slowly flashes.

MENU/RETURN Open/Close the System Settings Menu; Return
CONFIRM/MUTE Shortcut keys, Mute;

In the System Settings Menu, Confirm

UP/ BRIGHTNESS INCREASED Shortcut key, backlight brightness increase

In the System Settings Menu, Up

DOWN/ BRIGHTNESS DECREASE Shortcut key, backlight brightness reduction;

In the System Settings Menu, Down

LEFT/ VOLUME REDUCTION Shortcut key, Volume reduction

In the System Settings Menu, Left

RIGHT/ VOLUME INCREASE Shortcut key, Volume increase;

In the System Settings Menu, Right

  • Without HDMI signal, you won't be able to use the System Settings Menu and volume related shortcuts.
  • When using the speaker external release function, you need to connect to the POWER interface with an external power supply. Otherwise, the display flicker, sound distortion and even shutdown may occur due to insufficient POWER supply.

Resource

  • Document
  1. 7inch-HDMI-Display-(S)-Quick-Start.pdf
  2. 7inch-HDMI-Display-(S)-User-Manual.pdf
  3. How_to_install_the_LCD_driver_V1.2
  4. How_to_install_matchbox-keyboard
  5. How_to_use_Raspberry_Pi(Download,Format,Burn,SSH,PuTTy)-V1.0.pdf
  • Driver download
  1. Local download: LCD-show.tar.gz
  • Images Download
If you have difficulty installing the driver, or if you still can't use the display properly after installing the driver,
Please Try our Configned images for tested.
Just need download and write the image into the TF card. DO NOT need any driver installation steps.
Image Name Version Support Default Password Download
Raspbian 2019-09-26 PI4/PI3B+/PI3/PI2 /ZERO/ZERO W user:pi

password:raspberry

Baiduyun.jpgBaiduYun: MPI7008-7inch-S-1024x600-raspbian-buster-2019-09-26.7z Fetch Code:9otp
Mega-1.jpgMega: MPI7008-7inch-S-1024x600-raspbian-buster-2019-09-26.7z
Ubuntu MATE 16.02 PI3,PI2 user:pi

password:raspberry

Baiduyun.jpgBaiduYun: MPI7008-7inch-S-1024x600-Pi2-Pi3-ubuntu-mate-16.04-beta2.7zFetch Code:ukin
Mega-1.jpgMega: MPI7008-7inch-S-1024x600-Pi2-Pi3-ubuntu-mate-16.04-beta2.7z
Kali Linux RaspberryPi 2, 3 and 4 2019.4 PI4B,PI3B+,PI3,PI2 user:root

password:toor

Baiduyun.jpgBaiduYun: MPI7008-7inch-S-1024x600-Kali-2019.4.7z Fetch Code:xqxm
Mega-1.jpgMega: MPI7008-7inch-S-1024x600-Kali-2019.4.7z
  • Software
  1. Panasonic SDFormatter
  2. Win32DiskImager
  3. PuTTY
