10.1inch HDMI Display-H

From LCD wiki
Jump to: navigation, search
语言选择(Other languages): 中文 English


Product Video

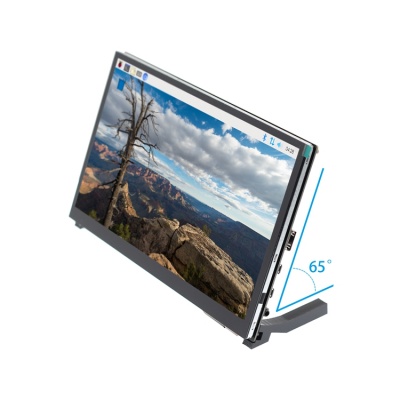

Product Pictures


Product Feature

  • IPS full Angle display
  1. The viewing Angle is large
  2. true color
  3. Dynamic picture quality is excellent
  4. Energy saving and environmental protection
  • 1024X600 hd vision
  1. Resolution for hd 1024X600 dot matrix
  2. It is more delicate than 800X480 ordinary screen
  • Tempered glass touch panel
  1. Hardness up to 6H, more durable and more scratch resistant
  • External audio output interface
  1. Stereo dual speaker output shock sound
  2. 3.5mm external audio interface
  • Used as a games monitor
  1. Support Xbox360,PS4,Switch etc
  • Used as a mini PC monitor
  1. Support raspberry pie, Banana Pi, BB Black and other mainstream development board
  2. Support Raspbian, Kali Linux, ubuntu and other mainstream systems, single touch plug and play without driver.
  • Used as a computer display
  1. Support win10/win8/win7 system, support five-point touch plug and play driver

Product Description

  • Product Parameters
SKU MPI1001
Screen Type IPS screen
Screen Size 10.1 inch
Resolution 1024 x 600
Backlight adjustment Switching and adjusting of dial switch
Volume adjustment Switching and adjusting of dial switch
Touch Screen Type Capacitive Touch Screen
Touch IC GT9271
Power MicroUSB(5V)
Speakers Power 8Ω 2W
Video Input Interface HDMI
Audio Output Interface 3.5mm Audio Interface + Stereo dual speaker output
Module Size (L x W x H) 164.90 × 102.00 × (14.25±0.2)mm
Packaging Size (L x W x H) 295*195*70 (mm)
Product weight (including package) 900g

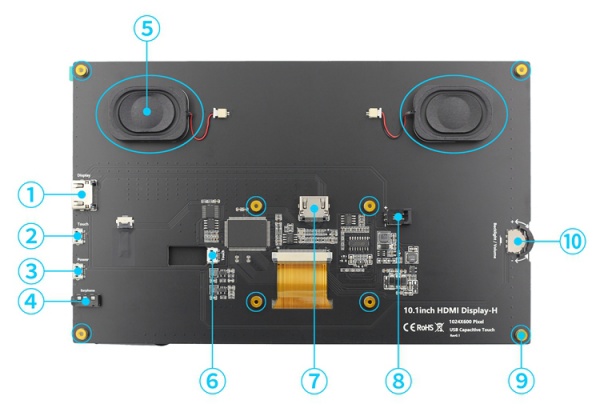

  • Key and Interface Function Description


KEY and Interface DESCRIPTION
① HDMI Interface Input HDMI signal, using HDMI cable connection, commonly used to connect to the computer,The maximum supported resolution is 1920x1080
② Touch Interface Transfer touch signal, connect with micro USB cable, provide touch and power supply function, commonly used to connect computer
③ Power Interface Connect to the power supply and use micro USB cable to connect. Only power supply function is provided
④ 3.5mm Audio Interface Output audio signal, connect audio output device, such as headphones
⑤ Stereo speakers Output audio signal for external playback of audio signal
⑥ Touch Interface Transmit touch signal, connect with micro USB cable, provide touch and power supply function, commonly used to connect Raspberry Pi
⑦ HDMI Interface Input HDMI signal, connect with HDMI adapter, only used to connect to the Raspberry Pi,The maximum supported resolution is 1024x600
⑧ Cooling Fan Interface Connect cooling fan
⑨ Copper x 8 Used to connect raspberry pie and scaffolds
⑩Wheel Switch Used to adjust screen backlight brightness and volume. By default, in the volume adjustment state, up and down to adjust the volume + and -. Press the switch to switch to the backlight brightness adjustment state, up and down to adjust the backlight brightness increase and decrease respectively. The volume and backlight brightness adjustment state is switched by pressing the switch.
  • Product Size

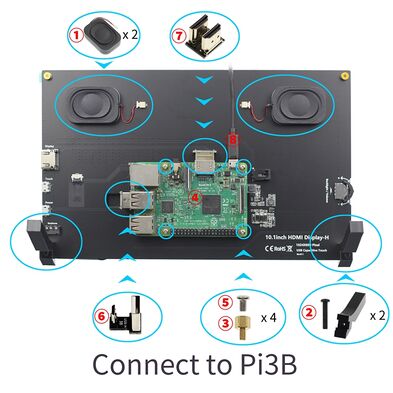

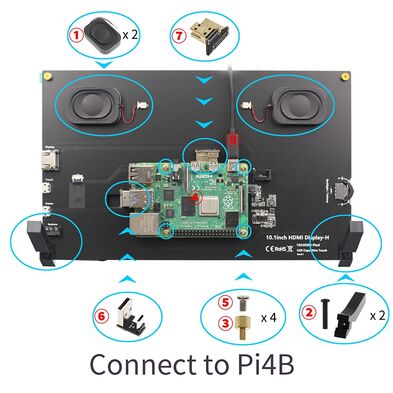

Connect to Raspberry Pi


Working with Raspberry Pi

Step 1. Download the Official image

1) Download Raspbian Official Image
Download URL: https://www.raspberrypi.org/downloads/raspbian/
Username: pi Password: raspberry
2) Download Ubuntu Mate Official Image
Download URL: https://ubuntu-mate.org/download/
The user name and password can be set by yourself after startup
3) Download Kail Official Image
Download URL: https://www.offensive-security.com/kali-linux-arm-images/
Username: kali (The old version is root) Password: kali(The old version is toor)
4) Download Retropie Official Image
Download URL: https://retropie.org.uk/download/
Username: pi Password: raspberry

Step 2. Brun Official Image

1) Download and install tool software(If they are already installed,this step can be ignored)
SD card format software SDCard Formatter download URL :
https://www.sdcard.org/downloads/formatter_4/
Image burning software win32diskimager download URL:
https://sourceforge.net/projects/win32diskimager/
2) Format SD card
Insert the SD card into the card reader -> Insert the card reader into the computer -> Open the SDFormatter software -> Select SD card ->
Select quick format (generally select quick format, other options can be selected according to your own needs) -> Click the Format button ->
Select "Yes" -> Click OK after formatting.
3) Brun Image
Open the win32diskimager software -> Select the image file to be burned (xxx.img ) -> Select SD card -> Click the "write" button ->
Select "Yes" -> Wait for the burning to complete (the whole process lasts about 10 minutes)

Step 3. Modify the “config.txt” configuration file

Open the “config.txt” file in the root directory of SD card on the computer, Add the following at the end of the file, save and exit.
hdmi_force_edid_audio=1
max_usb_current=1
hdmi_force_hotplug=1
config_hdmi_boost=7
hdmi_group=2
hdmi_mode=87
hdmi_drive=2
display_rotate=0
hdmi_cvt 1024 600 60 6 0 0 0

Step 4. Insert SD card

After the above steps are completed, pop up the SD card on the computer and insert it into the SD card slot on the back of the raspberry pie.

Step 5. Running system

Connect the HDMI interface and touch interface of the display screen to raspberry pie, connect the power supply of raspberry pie,
and start the machine to display and touch normally..

Work as HDMI touch monitor

This product can be used as the HDMI touch monitor of Windows computer, only need to connect HDMI interface and TOUCH interface, can normally display and support up to five points touch.
