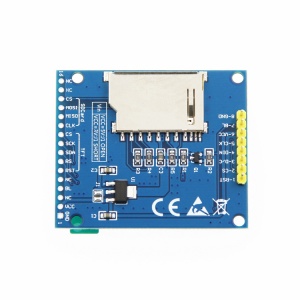

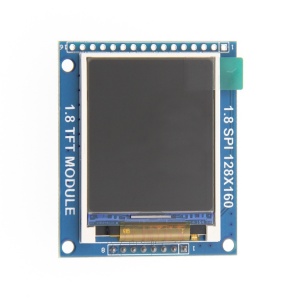

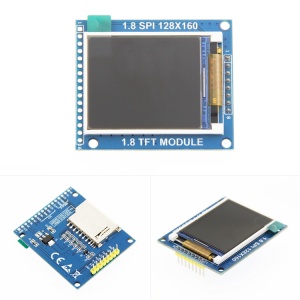

Product Picture
Product Description
- 1.8-inch color screen,support 65K color display,display rich colors
- 128X160 resolution, clear display
- Using the SPI serial bus, it only takes a few IOs to illuminate the display
- With SD card slot for convenient function expansion
- Provide underlying libraries and rich sample programs for Arduino, C51, and STM32 platforms
- Military-grade process standards, long-term stable work
- Provide underlying driver technical support
Product Parameters
| Name | Parameter |
| Display Color | 16BIT RGB 65K color |
| SKU | MSP1804 |
| Screen Size | 1.8(inch) |
| Type | TFT |
| Driver IC | ST7735S |
| Resolution | 128*160 (Pixel) |
| Luminance | 410Cd/m2 |
| Module Interface | 4-wire SPI interface |
| Backlight | 2 White Led |
| Active Area (AA area) | 28.03x35.04 (mm) |
| Module PCB Size | 44.96x53.47 (mm) |
| Operating Temperature | -30℃~80℃ |
| Storage Temperature | -30℃~80℃ |
| VCC power voltage | 3.3V~5V |
| Logic IO port voltage | 3.3V(TTL) |
| LED Current | 61.5(mA) |
| Power Consumption | 0.33w |
| Rough Weight(Package containing) | 18 (g) |
Interface Definition
| Number | Pin Label | Description |
| 1 | RST | LCD reset signal, low level reset |
| 2 | CS | LCD chip select signal, low level enable |
| 3 | D/C | LCD register / data selection signal,
high level: register, low level: data |
| 4 | DIN | LCD SPI bus write data signal |
| 5 | CLK | LCD SPI bus clock signal |
| 6 | VCC | LCD Power positive (3.3V~5V) |
| 7 | BL | Backlight control, high level lighting,
if not controlled, connect 3.3V always bright |
| 8 | GND | LCD Power ground |
Product Documentation
- 1.8 inch SPI Module User Manual
- 1.8 inch TFT Specifications
- 1.8 inch SPI Module Size Picture
- 1.8 inch SPI Module Schematic
- 1.8 inch QDTFT1801 TFT LCD Schematic and PCB Package Library
- Driver IC ST7735S Data sheet
Program Download
Reference Materials
- Arduino IDE software use illustration
- C51 Keil and stc-isp software use illustration
- STM32 keil software use illustration
- PCtoLCD2002 software use illustration
- Image2Lcd software use illustration
- Chinese and English display modulo settings
