1.5inch OLED Module SKU:MC01503
Contents

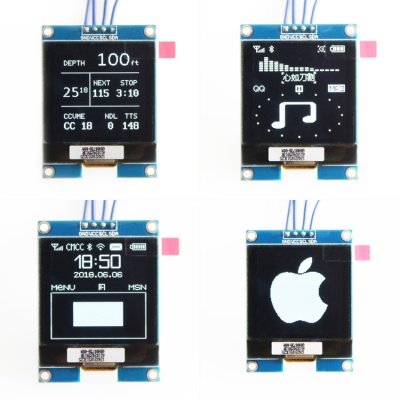

Product Picture
Product Description
- 1.5-inch OLED, high resolution: 128X64 (same resolution as 12864, high PPI)
- Super large viewing angle: greater than 160 °(the screen with the largest viewing angle in the display screen)
- Ultra low power consumption: normal display 0.06w (far lower than TFT display)
- Wide voltage supply (3V ~ 5V), compatible with 3.3V and 5V level logic, without level conversion chip
- The default SPI interface (IIC interface can be changed), only 5 IOS are needed to light up easily
- The working temperature range is industrial grade (- 20 ℃ ~ 70 ℃)
- Military grade process standard, long-term stable work
- Provide rich routines, provide the underlying driver technical support
- Support 16 bit grayscale display
Product Parameters
| Name | Parameter |
| Display Color | white |
| SKU | MC01503 |
| Screen Size | 1.5(inch) |
| Screen Type | OLED |
| Driver IC | SSD1327 |
| Resolution | 128*128 (Pixel) |
| Module Interface | IIC，①-GND,②-VCC,③-SCL,④-SDA |
| Active Area | 26.86x26.86(mm) |
| Module PCB Size | 45.50x34.30(mm) |
| visual angle | >160° |
| Operating temperature | -20℃~60℃ |
| Storage temperature | -30℃~70℃ |
| Operating Voltage | 3.3V / 5V |
| Power Consumption | TBD |
| Rough Weight(Package containing) | 12(g) |
Interface Definition
| PIN | Number | Pin description |
| 1 | GND | OLED power ground |
| 2 | VCC | OLED power positive (3.3V~5V) |
| 3 | SCL | OLED IIC bus clock signal |
| 4 | SDA | OLED IIC bus data signal |
Program Download
Product Documentation
- 1.5inch OLED moudule User Manual
- 1.5inch OLED Structure chart
- 1.5inch OLED Specification
- 1.5inch OLED Module Size Picture
- 1.5inch OLED Module Schematic
- Driver IC SSD1327 Datasheet
开发软件环境使用说明
- Arduino IDE software use illustration
- RaspberryPi GPIO library installation instructions
- Python Image Library installation instructions
- C51 Keil and stc-isp software use illustration
- STM32 keil software use illustration
- PCtoLCD2002 software use illustration
- Image2Lcd software use illustration
- Chinese and English display modulo settings
