0.96inch IPS ST7789 Module
Contents
Product Picture

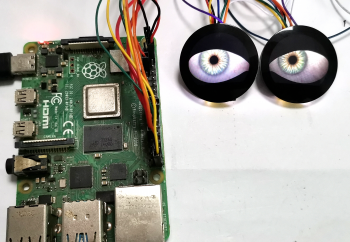

Product Description
- 0.96inch color screen with 240x198 resolution of 65K colors and rich display colors
- The upgrade adopts IPS full view panel, with good visual angle
- On board level conversion circuit, compatible with 5V and 3.3V MCU
- Adopting a 4-wire SPI serial bus to save I/O pins
- Modules can be selected with or without glass cover plates
- Unique circular display screen
- Module input supports slot interfaces with a spacing of 1.25mm
- Provide rich example learning programs (ESP32/STM32/Arduino UNO&Mage2560/C51/CH32/RaspberryPi)
- Provide low-level driver technical support, and update WIKI information online
- Multiple tests for module aging can meet military level standards, supporting long-term stable work
Product Parameters
| Name | Parameter |
| LCD Parameters | |
| Screen Size | 0 96inch |
| Screen Type | IPS |
| Resolution | 240xRGBx198(pixels) |
| Active Area (AA area) | 24.408(W)x20.137(H)(mm) |
| Number of Colors(Max) | 65K |
| Driver IC | ST7789H2 |
| Display Interface | 4-Line SPI |
| Pixel Size | 0.1017(H)x0.1017(V)(mm) |
| View Angle | ALL 0’CLOCK |
| Brightness(TYP) | 300(cd/m2) |
| Backlight Type | White LED*2 |
| Operation Temperature | -10~60(℃) |
| Storage Temperature | -20~70(℃) |
| Size Parameters | |
| TFT Outline Size | 27.4±0.2(W)x27.0±0.2(H)x1.31±0.15(D)(mm)(Excluding adhesive backing) |
| Module Outline Size | NO Glass Cover Plate:29.73(W)x28.14(H)x6.66(D)(mm)(Including positioning columns)
Have Glass Cover Plate:31.88(W)x31.88(H)x9.65(D)(mm)(Including positioning columns) |
| Electrical Parameters | |
| Working Voltage | 5.0 V/3.3V |
| Backlight Current | 40 mA |
| Power | 0.09 W |
| Other Parameters | |
| SKU | NO Glass Cover Plate: MSP0962
Have Glass Cover Plate: MSP0963 |
| Interface | 8P 1.25mm slot interface |
| Weight(including package) | MSP0962: 21g
MSP0963: 25g |

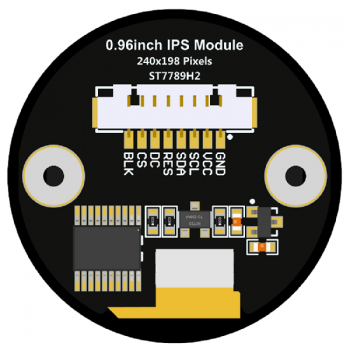

Interface Definition
- Interface Function Description
| Number | Interface | Function Description |

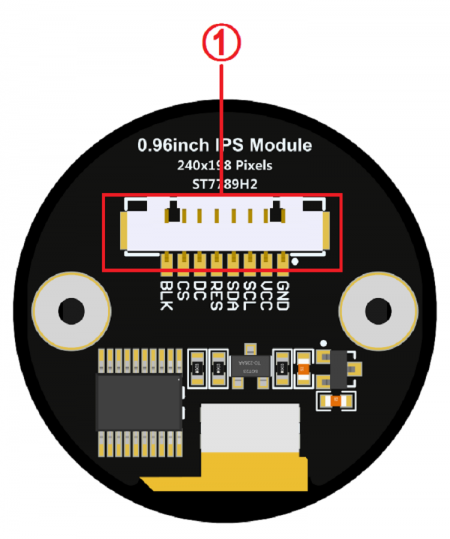

| ① | 8P slot | 1.25mm spacing slot, module signal input pins |
- Pin Function Description
| Number | Pin Label | Description |
| 1 | GNDVCC | LCD Power ground |
| 2 | VCC | LCD power positive(It is recommended to connect to 5V. When connected to 3.3V, the backlight brightness will be slightly dim) |
| 3 | CL | LCD SPI bus clock signal |
| 4 | SDA | LCD SPI bus write data signal |
| 5 | RES | LCD reset control signal, Low level reset |
| 6 | DC | LCD command / data selection control signal
High level: data, low level: command |
| 7 | CS | LCD selection control signal, Low level active |
| 8 | BLK | LCD backlight control signal (If you need control, please connect the pins. If you don't need control, you can skip it) |
